کارت گرافيک ZOTAC GAMING GeForce RTX 3080 Trinity OC LHR
-
GPUGeForce RTX 3080
-
CUDA cores8704
-
Video Memory10GB GDDR6X
-
Memory Bus320-bit
-
Engine ClockBoost: 1725 MHz
-
Memory Clock19 Gbps
-
PCI Express4.0 16x
-
Display Outputs3 x DisplayPort 1.4a (up to 7680x4320@60Hz) 1 x HDMI® Connector* *Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1 Specification
-
HDCP Support2.3
-
Multi Display CapabilityQuad Display
-
Recommended Power Supply750W
-
Power Consumption320W
-
Power Input2 x 8-pin
-
DirectX12 Ultimate
-
OpenGL4.6
-
CoolingIceStorm 2.0
-
Slot Size2.5 slot
-
SLINot Supported
-
Supported OSWindows 10 64-bit (build 2004 or later)
-
Card Length317.8mm x 120.7mm x 58mm / 12.5" x 4.8" x 2.3"
-
Accessories2 x Dual 6-pin to 8-pin cable Manual
توجه ؛
کارت گرافيک ASUS ROG STRIX GeForce RTX 3080 Gaming OC LHR 12GB
-
ChipsetNVIDIA® GeForce RTX™ 3080
-
VRAM12 GB
-
VGANo
-
DVINo
-
HDMI2
-
Display Port3
-
VRAM TypeGDDR6X
-
Bus Width384bit
-
ConnectorPCIe 4.0
-
miniHDMINo
-
miniDisplayPortNo
-
HDCPYes
-
DirectX12
-
OverclockedYes
-
Cooling TypeActive Cooling
-
Cooler WidthTri-Slot
-
SLINo
-
CrossfireNo
-
Low ProfileNo
-
Performance LevelEnthusiast
-
GPU Length319 mm
-
GPU Boost Clock1890 MHz
-
GPU Base Clock1260 MHz
-
Power Connector3x 8pin
-
Recommended power supply850 W
کارت گرافيک GIGABYTE AORUS GeForce RTX 3070 Ti MASTER 8G
-
Graphics ProcessingGeForce RTX™ 3070 Ti
-
Core Clock1875 MHz (Reference Card: 1770 MHz)
-
CUDA® Cores6144
-
Memory Clock19000 MHz
-
Memory Size8 GB
-
Memory TypeGDDR6X
-
Memory Bus256 bit
-
Memory Bandwidth (GB/sec)608 GB/s
-
Card BusPCI-E 4.0 x 16
-
Digital max resolution7680x4320
-
Multi-view4
-
Card sizeL=324 W=142 H=70 mm
-
PCB FormATX
-
DirectX12 Ultimate
-
OpenGL4.6
-
Recommended PSU850W
-
Power Connectors8 pin*2 + 6 pin*1
-
OutputDisplayPort 1.4a *3 HDMI 2.1 *2 HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0)
-
SLI SupportN/A
-
Accessories
کارت گرافيک GIGABYT GeForce RTX 3070 Ti GAMING OC 8G
-
Graphics ProcessingGeForce RTX™ 3070 Ti
-
Core Clock1830 MHz (Reference Card: 1770 MHz)
-
CUDA® Cores6144
-
Memory Clock19000 MHz
-
Memory Size8 GB
-
Memory TypeGDDR6X
-
Memory Bus256 bit
-
Memory Bandwidth (GB/sec)608 GB/s
-
Card BusPCI-E 4.0 x 16
-
Digital max resolution7680x4320
-
Multi-view4
-
Card sizeL=320 W=129 H=55 mm
-
PCB FormATX
-
DirectX12 Ultimate
-
OpenGL4.6
-
Recommended PSU750W
-
Power Connectors8 pin*2
-
OutputDisplayPort 1.4a *2 HDMI 2.1 *2
-
SLI SupportNo
-
Accessories
کارت گرافيک INNO3D GEFORCE RTX 3060 Ti TWIN X2 OC LHR
| GPU Engine Specs: | |
|---|---|
| CUDA Cores | 4864 |
| Boost Clock (MHz) | 1680 |
| Base Clock(MHz) | 1410 |
| Thermal and Power Spec: | |
| Minimum System Power Requirement (W) | 650 |
| Supplementary Power Connectors | 8-pin |
| Memory Specs: | |
| Memory Clock | 14Gbps |
| Standard Memory Config | 8GB |
| Memory Interface | GDDR6 |
| Memory Interface Width | 256-bit |
| Memory Bandwidth (GB/sec) | 448 |
| Feature Support: | |
| Real-Time Ray Tracing | Yes |
| Ray Tracing Cores | 2nd Generation |
| Tensor Cores | 3rd Generation |
| NVIDIA Architecture | Ampere |
| Microsoft DirectX | 12 Ultimate |
| NVIDIA DLSS | Yes |
| PCI Express Gen 4 | Yes |
| NVIDIA GeForce Experience | Yes |
| NVIDIA Ansel | Yes |
| NVIDIA FreeStyle | Yes |
| Bus Support | PCI-E 4.0 X16 |
| NVIDIA ShadowPlay | Yes |
| NVIDIA Highlights | Yes |
| OS Certification | Windows 10, Linux, FreeBSDx86 |
| NVIDIA G-SYNC™-Ready | Yes |
| Lighting module | White LED logo (No RGB Control) |
| Game Ready Drivers | Yes |
| NVIDIA Studio Drivers | Yes |
| NVIDIA GPU Boost™ | Yes |
| Vulkan API | Yes |
| OpenGL | 4.6 |
| HDMI 2.1 | Yes |
| DisplayPort 1.4a | Yes |
| NVIDIA Encoder | 7th Generation |
| NVIDIA Decoder | 5th Generation |
| LHR | This GeForce RTX 3060 Ti graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.). |
| Accessories: | |
| Installation Guide | Yes |
| Power Guide | Yes |
| Graphics Card Dimensions: | |
| Length | 240mm |
| Height | 120mm |
| Width | 2-slot |
| Display Support: | |
| Multi Monitor | Yes |
| Maxmium Digital Resolution | 7680x4320 |
| HDCP | 2.3 |
| Standard Display Connectors | HDMI 2.1, 3x DisplayPort 1.4a |
توجه ؛
کارت گرافيک MSI GeForce RTX 3070 Ti VENTUS 3X 8G OC

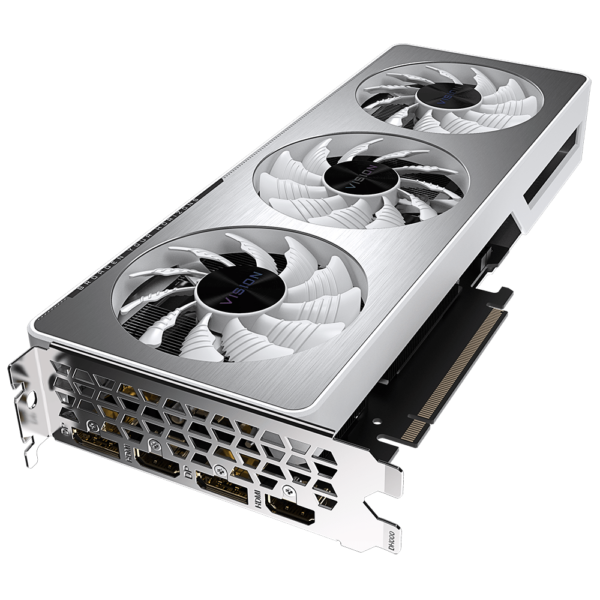

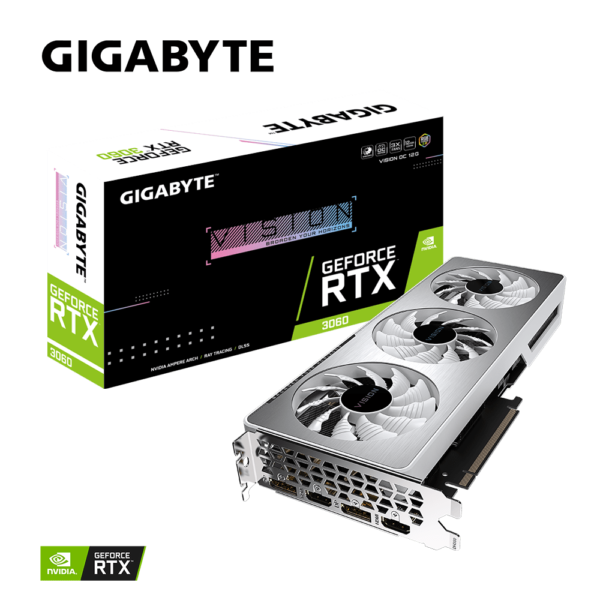

کارت گرافيک GIGABYTE GeForce RTX 3060 VISION OC 12G
-
raphics ProcessingGeForce RTX™ 3060
-
Core Clock1837 MHz (Reference Card: 1777 MHz)
-
CUDA® Cores3584
-
Memory Clock15000 MHz
-
Memory Size12 GB
-
Memory TypeGDDR6
-
Memory Bus192 bit
-
Memory Bandwidth (GB/sec)360 GB/s
-
Card BusPCI-E 4.0 x 16
-
Digital max resolution7680x4320
-
Multi-view4
-
Card sizeL=280 W=116 H=41 mm
-
PCB FormATX
-
DirectX12 Ultimate
-
OpenGL4.6
-
Recommended PSU550W
-
Power Connectors8 pin*1
-
OutputDisplayPort 1.4a *2 HDMI 2.1 *2
-
SLI SupportN/A
-
AccessoriesQuick guide
توجه ؛
کارت گرافيک PALiT GeForce RTX 3060 Dual 12G
Memory Amount 12G
Memory Interface 192bit
DRAM Type GDDR6
Graphics Clock 1320 MHz
Boost Clock 1777 MHz
Memory Clock 15 Gbps
CUDA Cores 3584
Memory Bandwidth (GB/sec) 360
Microsoft DirectX Microsoft DirectX® 12 Ultimate
OpenGL 4.6
Bus Support PCI-E 4.0
HDMI HDMI 2.1
DisplayPort DP1.4a x 3
Maximum Digital Resolution 7680x4320
Height 2 Slot
Board Size 245x119x40mm
Graphics Card Power 170W
Minimum Recommended System Power 550W
Supplementary Power Connectors 8-pin x 1
Accessory Manual
توجه ؛
کارت گرافیک ZOTAC GAMING GeForce RTX 3060 12GB
-
Memory Bus192-bit
-
Engine ClockBoost: 1807 MHz
-
Memory Clock15 Gbps
-
PCI Express4.0 16x
-
Display Outputs3 x DisplayPort 1.4a (up to 7680x4320@60Hz) HDMI 2.1* (up to 7680x4320@60Hz) *Ultra High Speed HDMI Cable is required to support 8K/60FPS or 4K/120FPS
-
HDCP Support2.3
-
Multi Display CapabilityQuad Display
-
Recommended Power Supply600W
-
Power Consumption170W
-
Power Input8-pin
-
DirectX12 Ultimate
-
OpenGL4.6
-
CoolingIceStorm 2.0
-
Slot SizeDual Slot
-
SLINot Supported
-
Supported OSWindows 10 64-bit (build 2004 or later)
-
Card Length224.1mm x 116.3mm x 39.2mm / 8.8" x 4.6" x 1.5"
-
AccessoriesManua
توجه ؛
کارت گرافيک PALiT GeForce RTX 2060 Dual 12GB
emory Amount 12GB
Memory Interface 192bit
DRAM Type GDDR6
Graphics Clock 1470 MHz
Boost Clock 1650 MHz
Memory Clock 14 Gbps
RTX-OPS 41T
CUDA Cores 2176
Memory Bandwidth (GB/sec) 336
Microsoft DirectX 12
OpenGL 4.6
Bus Support PCI-E 3.0 x 16
DVI Dual-Link DVI-D
HDMI HDMI 2.0b
DisplayPort DP1.4a x 1
Maximum Digital Resolution 7680x4320@60Hz
Height 2 Slot
Board Size 235 x 115 x 40 mm
Graphics Card Power 184 W
Minimum Recommended System Power 550 W
Supplementary Power Connectors 8-pin x 1
Accessory Manual
توجه ؛
کارت گرافيک GIGABYTE GeForce RTX 2060 6G
-
Graphics ProcessingGeForce RTX™ 2060
-
Core Clock1680 MHz
-
RTX-OPS36
-
CUDA® Cores1920
-
Memory Clock14000 MHz
-
Memory Size6 GB
-
Memory TypeGDDR6
-
Memory Bus192 bit
-
Memory Bandwidth (GB/sec)336 GB/s
-
Card BusPCI-E 3.0 x 16
-
Digital max resolution7680x4320
-
Multi-view4
-
Card sizeL=225.65 W=122.02 H=40.5 mm
-
PCB FormATX
-
DirectX12
-
OpenGL4.6
-
Recommended PSU500W
-
Power Connectors8 Pin*1
-
OutputDisplayPort 1.4 *3 HDMI 2.0b *1
-
SLI SupportN/A
-
Accessories1. Quick guide 2. Driver CD
توجه ؛
کارت گرافيک ASUS TUF Gaming Radeon RX 6900 XT
Graphic Engine
AMD Radeon RX 6900 XT
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR6
Engine Clock
OC mode : Up to 2340 MHz (Boost Clock)/ Up to 2105 MHz (Game Clock)
Gaming mode : Up to 2310 MHz (Boost Clock)/ Up to 2075 MHz (Game Clock)
Stream Processors
5120
Memory Speed
16 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
Yes
Accessories
1 x TUF certificate of Reliability
1 x Collection card
1 x ASUS ruler
1 x Speedsetup manual
Software
ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions
13 " x 5.52 " x 2.28 " Inch
32 x 14.02 x 5.78 Centimeter
Recommended PSU
850W
Power Connectors
2 x 8-pin
Slot
2.9 Slot
AURA SYNC
ARGB
